3 in 1 Draft Stoppa Mounting Plate Adapter | Seal Exhaust Fans

3 in 1 Draft Stoppa Mounting Plate Adapter | Seal Exhaust Fans

Draught Proofing

Regular price $19.00
Regular price Sale price $19.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Industry Leading
  • Quality Assured
  • Australian Designed
  • Step-by-Step Videos
  • Ships within 2 business days

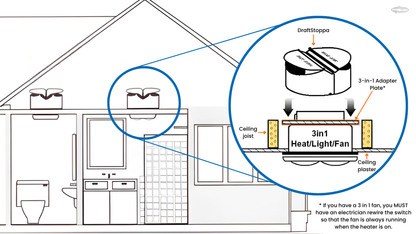

The DraftStoppa Mounting Plate is used in conjunction with the DraftStoppa Exhaust Fan Cover. It sits over the combination fan providing an elevated and stable support base for the DraftStoppa Exhaust Fan.

Key Benefits:

  • Low cost: The unit's cost is rapidly recouped through the energy savings it generates, so it becomes financially profitable in a short time.
  • Easy to install: Installation is simple and easy to follow, as we have provided step-by-step video instructions to guide you through the process.
  • Durable: Crafted from durable plastic, this product is built to withstand years of use.


The DraftStoppa Mounting Plate effectively allows you to install a DraftStoppa over a 3 in 1 fan.  The combination of the two products stops draughts and creepy crawlies from entering your home


  • Australian designed and manufactured
  • Made entirely from recycled materials
  • Fire retardant
  • Simple to install
  • Fits over most 3 in 1 exhaust fans
  • Cost effective


  • Save up to 30% on your energy costs
  • Save on energy usage
  • Prevents hot or cold air entering from your roof cavity
  • Prevents polluted air from entering other parts of your home
  • Prevents bugs and other creepy crawlies from entering your home through your roof cavity.
  • No trades required to install


The ecologically friendly and adaptable DraftStoppa Adapter plate is made to improve the energy efficiency of buildings and residences. This adapter plate is a dependable way to stop heat loss and drafts in homes and businesses because it is made entirely of recyclable and fire-resistant materials.

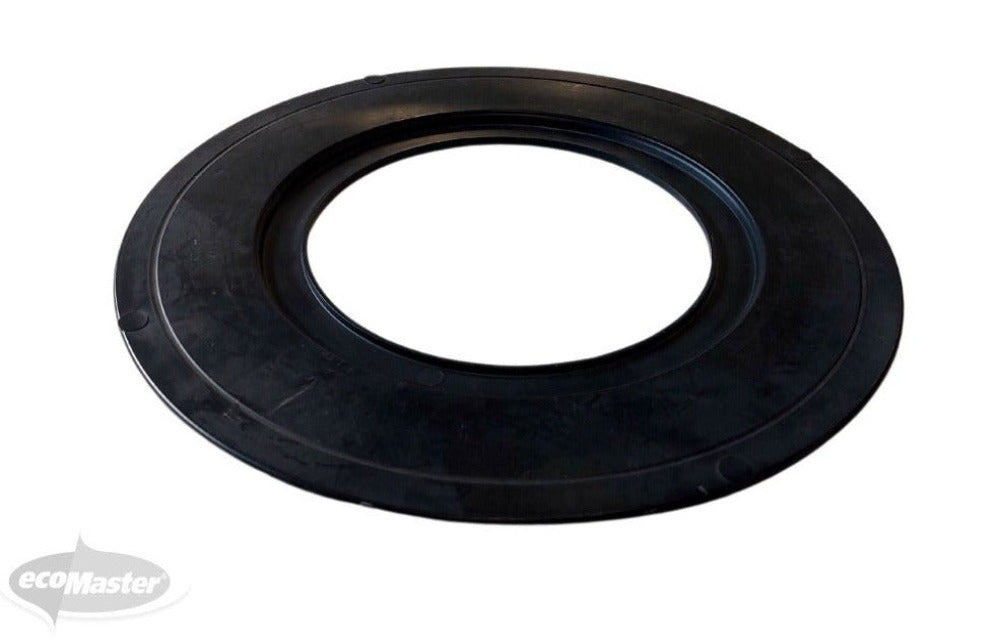

The DraftStoppa Adapter plate is a flat disc that is readily placed in a variety of configurations. It is 350mm in diameter and around 4mm thick. Because of its small size, it may be seamlessly integrated into existing structures without creating any problems or obstructions. The adapter plate's elegant and understated form guarantees a covert and efficient barrier against heat transmission and draughts.


Easy but you need to be able to get into, and be comfortable moving around in your attic space

How To

Get the full benefit from your 3 in 1 heat/light/fan Exhaust Fan

What you will need:

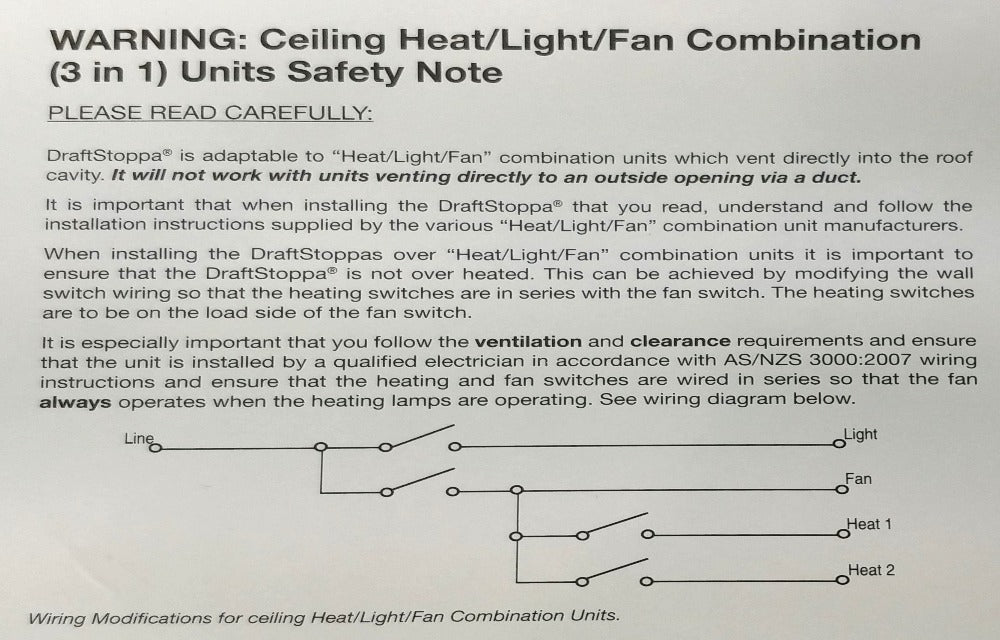

  • An electrician – organise with your electrician to re-wire the appliance so that the fan will automatically start when the heat lamps are turned on. This is an imperative step. It will avoid the DraftStoppa and plate melting.
  • A ladder – tall enough for you to enter your attic space through the ceiling access point
  • You will need sufficient crawl space in your ceiling
  • Headlamp torch
  • Gloves – optional

Our Technical Director, Maurice, shows you exactly how to install the Draft/Stoppa Mounting Plate in this video.


Q: I still burn gas in my home.  Is this product safe to use?
We strongly recommend that you replace your gas appliances with all electric options.  It will reduce the risk of carbon monoxide poisoning and the emission of water vapour.   Do not install this product - you need all the ventilation you can get.

Q: Why do I need to use the DraftStoppa Mounting Plate?
A: The design and shape of a typical 3 in 1 Heat lamp will prevent a DraftStoppa Exhaust Fan Cover from sealing correctly. The Adapter Plate provides a surface the DraftStoppa can seal down to on an otherwise obstructing Exhaust Fan.

Q: Do I need to get an electrician to rewire my 3-in-1 heat lamp unit in order to fit my DraftStoppa with a Mounting Plate over it?
A: Yes. It is essential to rewire the electrical switch so that the fan is on any time the heat lamps are used. This is necessary to prevent melting the DraftStoppa.

Q: Are there any things to watch out for?
A: Occasionally there are obstructions that cause difficulty with fitting. The most common ones are:

  • The ceiling joists are too close together to accommodate the DraftStoppa as it is slightly wider than the exhaust fan.
  • There is a pipe above the exhaust fan.
  • The power outlet supplying the fan has been fitted too close to the fan.

Q: What if my exhaust fan is on the ground floor of a two-storey home?
A: If your exhaust fan is not a 3 in 1, and there is sufficient space to install a Draftstoppa (which is usually the case), then this is achievable. However, 3 in 1 exhaust fans are normally too tall to allow for the fitting of a DraftStoppa and adapter plate.

Q: Will I still be able to use my fan?
A: This product should not prevent your fan from its natural function. If it does, then it may have inadvertently pushed into the side of the fan blades. Repositioning the DraftStoppa should clear the problem.


Q: Can I collect my order?
A: Yes you can!  A “Ready for Pickup” email will be sent to you when you order is ready to be collected.  Please click this link for the Click and Collect details.  Note:  this Collection Centre is in Preston in Victoria, NOT Prestons in NSW.

Q: When will my order be despatched?
A: Generally, your order will be despatched within 1 to 3 business days.

Q: How will my order be delivered?
A: Depending upon the size of your order, it will be shipped either by AusPost or a specialist courier (note this is NOT an express courier)

Q: Will my order be tracked?
A: Yes!  When your order is consigned, you will receive a tracking number that will show you where your order is and its expected delivery date.

AusPost - Track your order here
Specialist Courier - Track your order here

Please note: Orders with two or more items may arrive in separate parcels with no additional shipping charge

Q:  When will my order be delivered?
A: All AusPost orders are picked, packed and despatched within 2 business days.  Our experience with AusPost indicates that your order will be delivered within 2 - 5 business days.  Clearly this will fluctuate at peak shipping times such as Christmas.

If a specialist courier is selected your order will be packed and despatched within 3 business days.

Q: What happens if my order gets lost during transit?
A: On rare occasions we have had orders go missing. ecoMaster has solid procedures in place and photograph every order that leaves our warehouse.  The delivery of our orders at the local post office are videoed and we track the progress of orders.  If a delivery date appears to be beyond expectation, we will raise a query with the freighter on your behalf.  If your order cannot be found during transit, we will send a replacement.

Q: What happens if my order is stolen after delivery?
A: We will check with the freighter to ensure that the order was delivered to the correct address.  If that is confirmed, and your order has been stolen from your home after delivery, please raise a Police Report.  In practice, we have had very little of this behaviour.


Q: What is the product warranty for DraftStoppa?
A: DraftStoppa carries a product warranty of 5 years, as long as the product has been installed according to instructions.

Q: What is the installation warranty for DraftStoppa?
A: As the DraftStoppa is a DIY product there is no warranty on installation.

We have known 'failures' of the DraftStoppa unit when:

  • It was left sitting in the sun prior to installation. Whilst the DraftStoppa is heat resistant, is does not like UV which will cause the butterfly wings to warp.
  • It was installed over a 3 in 1 heat / lamp / fan unit and the switch was not rewired according to the manufacturers instructions.
  • The lugs that the butterfly wings are attached to have been snapped off due to excess pressure / impatient installation.

To get the best value for your investment, please, PLEASE watch the installation videos before you proceed.

If you have any questions, contact the ecoMaster team.  We are all ex-installers and have done this work thousands of times before.  We are here to help you.

Q: What do I do if I have a problem with this product?
A: Refer to our Returns / Refunds page [Learn More].  Our Research and Development team will be keenly interested to learn of any product failure and will want images and samples of the product (if possible) so they can determine what the cause of failure was.
