RP5 - 19mm Gap | Security Door

RP5 - 19mm Gap | Security Door

Door Draught Excluder

Door Seals

Regular price $17.00
Regular price Sale price $17.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Industry Leading
  • Quality Assured
  • Australian Designed
  • Step-by-Step Videos
  • Ships within 2 business days

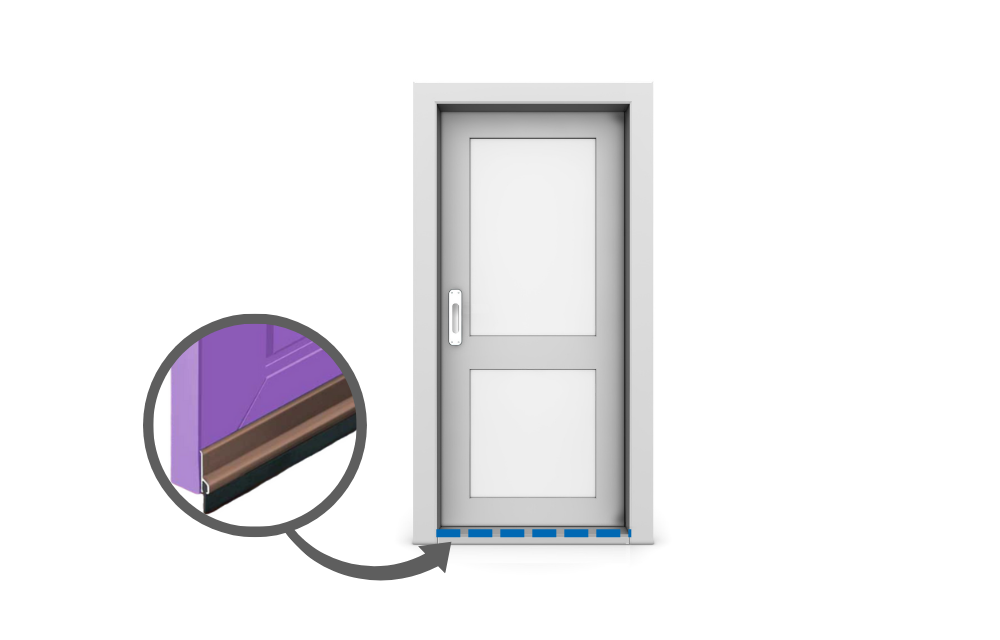

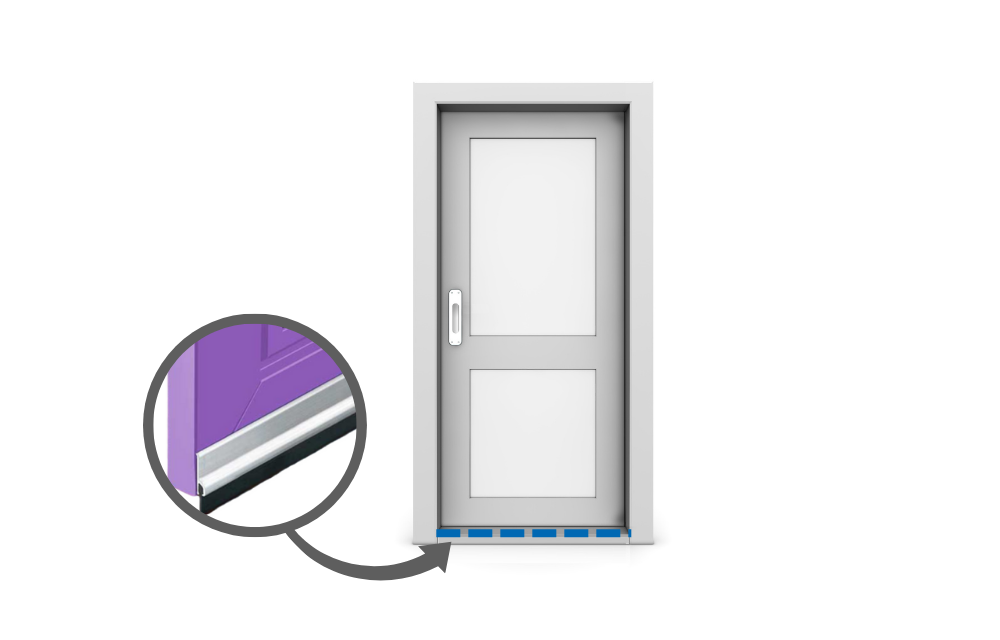

Security doors provide safety and ventilation, but gaps underneath can allow intruders and pests inside your home. The RP5 door seal is an effective solution that blocks these unwelcome visitors. This self-adhesive weather strip attaches to the bottom of security doors for a custom fit, sealing any spaces insects, rodents, or snakes could slip through. The easy-to-install RP5 keeps your home secure while still allowing air flow.



  • Easy fit
  • Quality long life anodized aluminium
  • UV-treated rubber seal
  • BAL 40 compliant
  • Self adhesive
  • Made in Australia
  • Durable


  • Works to reduce noise, light, and draughts
  • Helps to keep out insects and vermin
  • Does not interfere with the operation of the door
Suitable For:
  • Single or double inward opening doors
  • Single or double outward opening doors
  • Screen doors (security doors)
  • Bi-fold doors


RP5 Self adhesive, or screw fix, zinc plated


Screw fixing (screws supplied)

Brush seal height

Covers gaps up to 19mm






Suitable for

Installation at the base of:

  • Security doors (rodent and insect control)
  • Internal doors
  • Sliding doors
  • Double / French doors
  • Anywhere BAL40FZ is required


Explore Sweep Seal Alternatives [Learn More]


Fire Gasket flammability index <5 when tested to AS1530.2,
Energy NCC Pt. & J3.4



How To

What you will need:

  • Alcohol wipes or microfibre cloth with methylated spirits
  • Measuring tape
  • Pencil
  • Side cutters or pliers
  • Hacksaw

    How to Install:

    This video describes how to install and RP2a, which is a self adhesive brush seal.  The installation process for the RP17 and RP5 is exactly the same, but without the brush!

    Pro Tips:

    • Check the sweep of the door to make sure this is the right product for your home.
    • Surfaces must be clean and smooth to ensure good adhesion.
    • If the bottom of the door is rough or not straight, a screw fixed sweep seal would be a better choice (and that would be either an RP5 or RP26).
    • Press firmly along the adhesive twice for a strong bond with the door surface.
    • Pair the RP17 or RP5 with a perimeter seal such as EMV Seal to seal the other 3 edges of the door (two sides and the top).


    Q: What does the RP5 do?
    A: The RP5 Door Draught Excluder is a medium duty sweep seal that can be used for internal or external doors. It typically is attached to the bottom of the door to prevent draughts

    Q: Is the RP5 easy to install?
    A: The RP5 is easy to install and requires basic equipment.

    Q: How do you install the RP5?
    A: Installation instructions are included in the packet. Remember that sweep seals must push up onto an opposing surface in order to make a seal.

    Q: What is the RP5 made of?

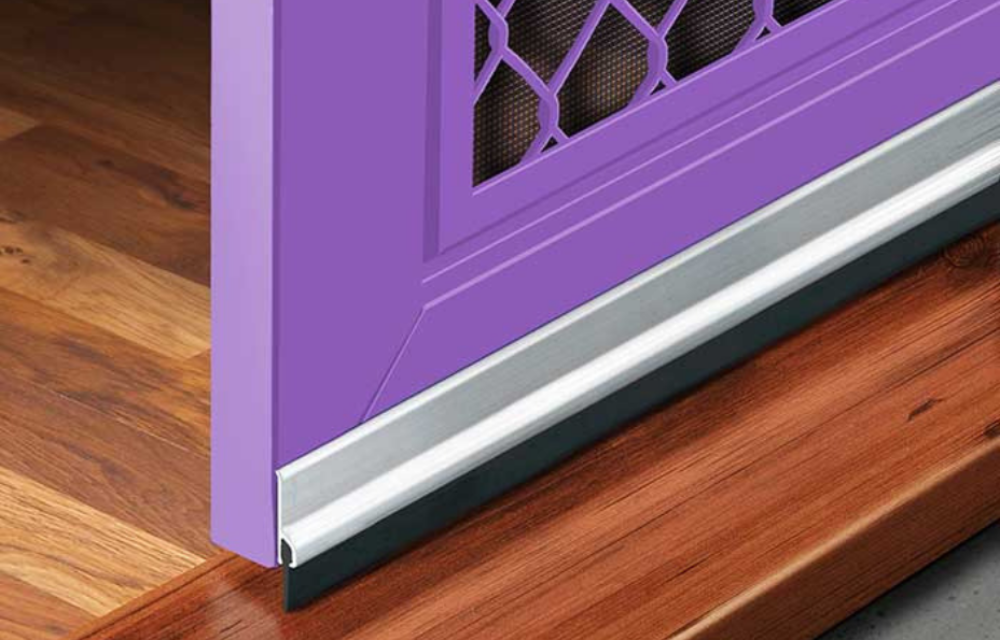

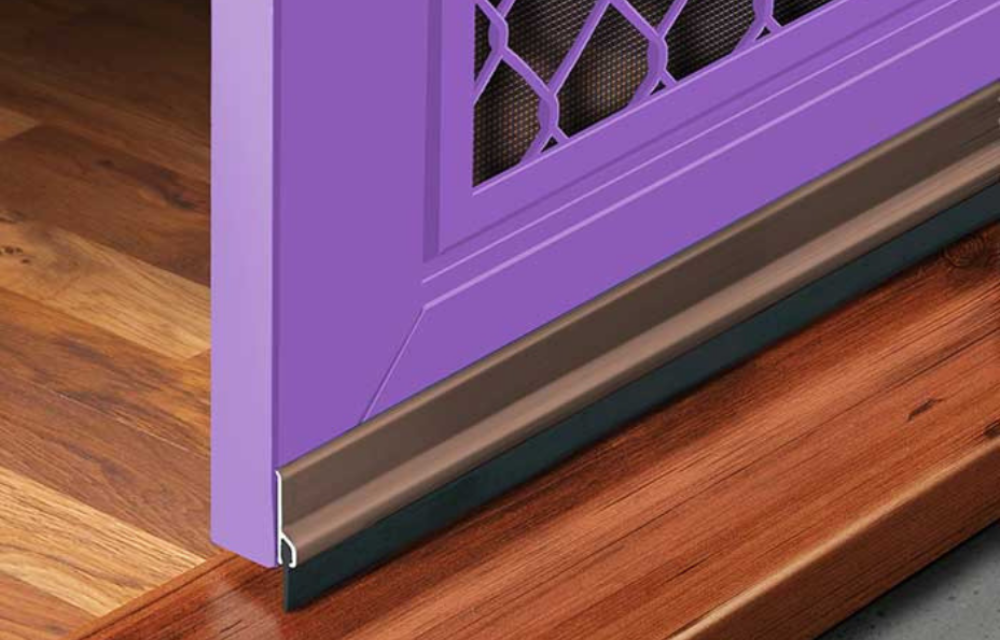

    A: The RP5 has a carrier that is made from anodized aluminum in either Silver or Bronze and a black flexible rubber seal.

    Q: Do you have any recommended installers for the RP5?
    A: A recommended installer is highly location dependent. To find out if we have a recommended installer in your area please email, or call 1300 326 627.

    Q: What fixings do I need?
    A: The RP5 comes with screw fixings.

    Q: Does this help reduce noise?
    A: The RP5 can help reduce noise when it is installed properly.

    Q: Is it fire rated?
    A: The RP5 is BAL 40 rated.

    Q: How do I know I have installed the product correctly?
    A: The rubber seal should slightly flex as the door is latched. If it does not flex then it is probably not making a seal on an opposing surface and therefore may not prevent draught.

    Q: Can I use the RP5 on a timber sliding door?
    A: You can use an RP5 as a seal for the back edge of a sliding door. The rubber blade typically seals against the timber of the fixed sidelight when the door is closed. You may need 2+ for this. Make sure to cut all ends so they butt up well together.

    Q: Will I still be able to open and close my doors?
    A: If the RP5 is installed correctly it will not prevent your door from its natural function.


    Q: Can I collect my order?
    A: Yes you can!  A “Ready for Pickup” email will be sent to you when you order is ready to be collected.
    Please click this link for the Click and Collect details. Note:  this Collection Centre is in Preston in Victoria, NOT Prestons in NSW.

    Q: When will my order be despatched?
    A:  Generally, your order will be despatched within 1 to 2 business days.

    Q: How will my order be delivered?
    A:  If this is the only product in your order, it will be delivered by Australia Post.

    Q: Will my order be tracked?
    A:  Yes!  When your order is consigned, you will receive a tracking number that will show you where your order is and its expected delivery date.
    Track your order here
    Please note: Orders with two or more items may arrive in separate parcels with no additional shipping charge

    Q: When will my order be delivered?
    A: All AusPost orders are picked, packed and despatched within 2 business days.  Our experience with AusPost indicates that your order will be delivered within 2 - 5 business days.  Clearly this will fluctuate at peak shipping times such as Christmas.

    Q: What happens if my order gets lost during transit?
    A: On rare occasions we have had orders go missing. ecoMaster has solid procedures in place and photograph every order that leaves our warehouse.  The delivery of our orders at the local post office are videoed and we track the progress of orders.  If a delivery date appears to be beyond expectation, we will raise a query with AusPost on your behalf.  If your order cannot be found during transit, we will send a replacement.

    Q: What happens if my order is stolen after delivery?
    A: We will check with AusPost to ensure that the order was delivered to the correct address.  If that is confirmed, and your order has been stolen from your home after delivery, please raise a Police report.


    Q: What is the product warranty for Raven door seals?
    A: Raven door seals carry a product warranty of 2 years, but can be highly effective for much longer than that.  We have seen very few failures of Raven products over the 20+ years that we have been installing them.

    Yes, they are slightly more expensive than other brands, but you only want to be installing your door seals once.

    Q: What is the installation warranty for Raven door seals?
    A: As this is a DIY product there is no warranty on installation.

    Q: How do I get some help?
    A:  If you have any questions, contact the ecoMaster team. We are all ex-installers and have lived experience of installing thousands of Raven poroducts.  We are here to help you and share our extensive experience so you get a great outcome for your home.

    Q: What do I do if I have a problem with this product?
    A: Refer to our Returns / Refunds page [Learn More].  Our Research and Development team will be keenly interested to learn of any product failure and will want images and samples of the product (if possible) so they can determine what the cause of failure was.
