RP4B | Tread Plate

RP4B | Tread Plate

Door Threshold

Regular price $31.00
Regular price Sale price $31.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Industry Leading
  • Quality Assured
  • Australian Designed
  • Step-by-Step Videos
  • Ships within 2 business days


Does your doorstep make it difficult for you to create a tight seal on your door bottom in spite having a Draught Excluder in place? The RP48B Door Threshold Plate will straighten out uneven doorsteps and help reduce the gap size on the bottom of your external door. The RP 4B, being quite a versatile treadplate, allows you to totally block out draughts from your living spaces.


How it Works:

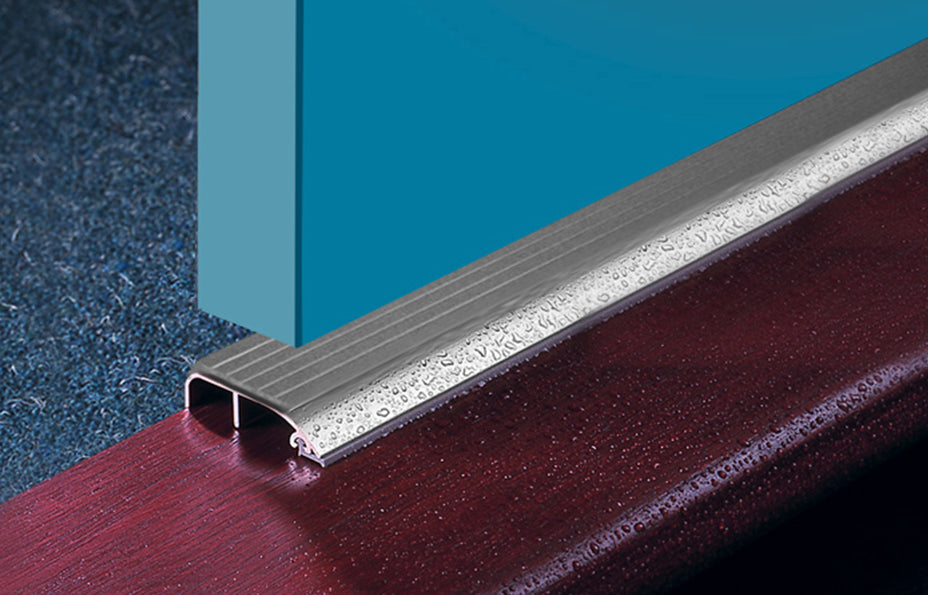

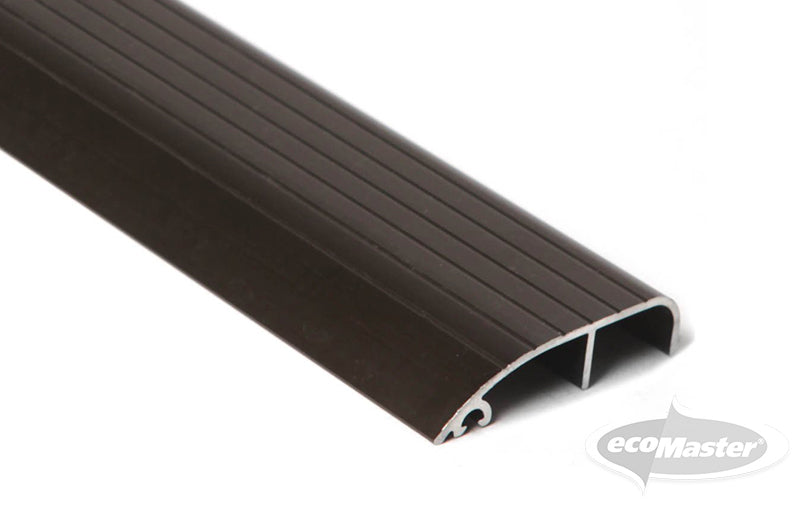

A high qualitdraught proofing solution for door bottoms, the RP4B is an aluminum door threshold plate designed to run along the doorstep and meet the appropriate draught excluder. It can be cut to size during installation.

This product is used to straighten or increase the height of the step to allow the appropriate draught excluder to effectively prevent draughts from your door bottom.


  • Aluminium construction with a integral sill gasket
  • Used in conjunction with other raven draught excluders, particularly the RP3 and RP35
  • Architectural quality
  • Durable
  • BAL FZ when used with a BAL rated door bottom seal.


  • Does not interfere with the opening and closing of the door
  • Raises the height of the door step by up to 16mm
  • Creates a straight flat surface for a draught excluder to make contact with to provide complete draught proofing of the bottom of the door

 Suitable For:

  • Bottom of door to raise up the door threshold



Length 1000mm
Colour Silver
Height 10mm
Width 44mm
Gap Height Up to 16mm
Installation Screw fixed - screws provided


Explore Treadplates [Learn More]


How To

What you will need:

  • Alcohol wipes or microfibre cloth with methylated spirits
  • Measuring tape
  • Pencil
  • Hacksaw

    How to Install:

    This is one of the new products we have that does not include an installation video.  That's because it is SO easy!

    Q: How is the RP4B fixed to a hardwood threshold?
    A: After cutting the RP4B to length, use a pencil to mark the screw points on the threshold. Ensure you pilot drill the threshold with a 3.5mm drill bit so that the screws are more easily fitted.

    Q: How can the RP4B be fixed onto a stone threshold?
    A: Once the RP4B is cut to length, place it on the threshold and mark the screw points with a nail and hammer through the fixing points. Remove the RP4B from the threshold. Using a 6mm masonry drill bit, drill each fixing point for sufficient depth to take the fixing screw. Fill each hole with red spaghetti or similar, put the RP4B in place and fit the fixing screws into the red spaghetti. If the stone threshold is not flat, be sure to fix carpenter's packers under the RP4B such that as the screws are tightened, the treadplate remains flat.

    Pro Tips:

    • Surfaces must be clean and smooth to ensure good adhesion.


    Q: What is the Raven RP4B threshold plate made of?
    A: The Raven RP4B threshold plate is made of high-quality anodised aluminium which ensures its durability and resistance to wear and tear over time.  That is critically important for a treadplate.

    Q: How does the Raven RP4B threshold plate help prevent air and water leakages?
    A:  By creating a flat surface at the door step for a draught excluder to fit snugly to.  The RP4B is not preventing air and water, but is facilitating the draught excluder to effectively do its job.

    Q: Tell me more about your tread plates?
    A: We've got your covered.  Explore all tread plates in one location [Learn More].


    Q: Can I collect my order?
    A: Yes you can!  A “Ready for Pickup” email will be sent to you when you order is ready to be collected.
    Please click this link for the Click and Collect details. Note:  this Collection Centre is in Preston in Victoria, NOT Prestons in NSW.

    Q: When will my order be despatched?
    A:  Generally, your order will be despatched within 1 to 2 business days.

    Q: How will my order be delivered?
    A:  If this is the only product in your order, it will be delivered by Australia Post.

    Q: Will my order be tracked?
    A:  Yes!  When your order is consigned, you will receive a tracking number that will show you where your order is and its expected delivery date.
    Track your order here
    Please note: Orders with two or more items may arrive in separate parcels with no additional shipping charge

    Q: When will my order be delivered?
    A: All AusPost orders are picked, packed and despatched within 2 business days.  Our experience with AusPost indicates that your order will be delivered within 2 - 5 business days.  Clearly this will fluctuate at peak shipping times such as Christmas.

    Q: What happens if my order gets lost during transit?
    A: On rare occasions we have had orders go missing. ecoMaster has solid procedures in place and photograph every order that leaves our warehouse.  The delivery of our orders at the local post office are videoed and we track the progress of orders.  If a delivery date appears to be beyond expectation, we will raise a query with AusPost on your behalf.  If your order cannot be found during transit, we will send a replacement.

    Q: What happens if my order is stolen after delivery?
    A: We will check with AusPost to ensure that the order was delivered to the correct address.  If that is confirmed, and your order has been stolen from your home after delivery, please raise a Police report.


    Q: What is the product warranty for Raven door seals?
    A: Raven door seals carry a product warranty of 2 years, but can be highly effective for much longer than that.  We have seen very few failures of Raven products over the 20+ years that we have been installing them.

    Yes, they are slightly more expensive than other brands, but you only want to be installing your door seals once.

    Q: What is the installation warranty for Raven door seals?
    A: As this is a DIY product there is no warranty on installation.

    Q: How do I get some help?
    A:  If you have any questions, contact the ecoMaster team. We are all ex-installers and have lived experience of installing thousands of Raven poroducts.  We are here to help you and share our extensive experience so you get a great outcome for your home.

    Q: What do I do if I have a problem with this product?
    A: Refer to our Returns / Refunds page [Learn More].  Our Research and Development team will be keenly interested to learn of any product failure and will want images and samples of the product (if possible) so they can determine what the cause of failure was.
