RP74 - 13mm | Brush Seal

RP74 - 13mm | Brush Seal

Door Draught Excluder

Door Seals

Regular price $39.00
Regular price Sale price $39.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Industry Leading
  • Quality Assured
  • Australian Designed
  • Step-by-Step Videos
  • Ships within 2 business days

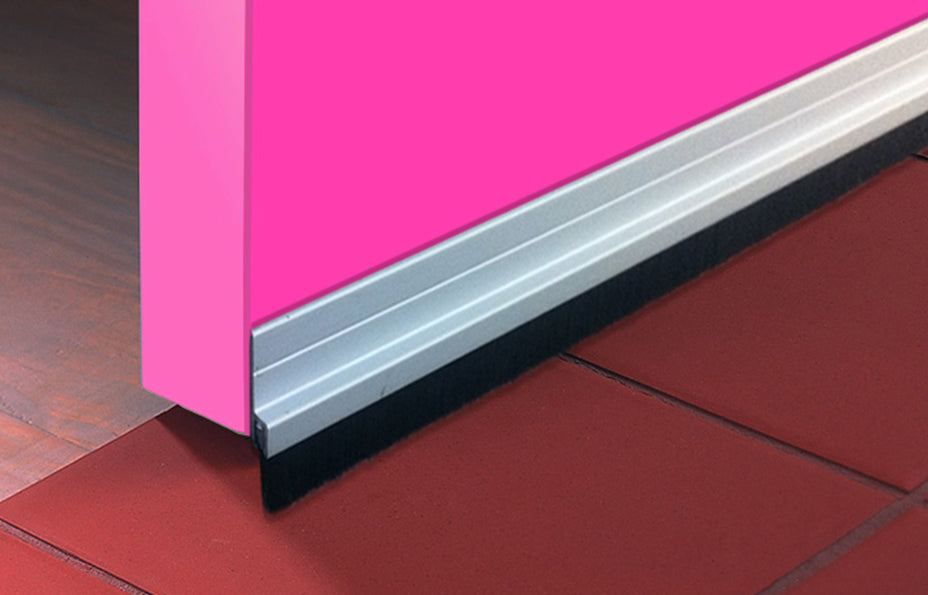

The RP74 is a self-adhesive brush seal that attaches to the bottom of doors opening over hard, flat surfaces. Its wide aluminium carrier holds a dense 13mm nylon brush that seals gaps against air infiltration. Though often used on interior hinged doors, the RP74 also works on some exterior timber, cavity, and sliding doors. Check the product specifications to see if it fits your application. The RP74 can seal the trailing edge of exterior timber sliding doors by attaching to the fixed frame and sealing against the sliding door.


The versatile RP74 Brush Seal provides an effective seal to reduce draughts and noise in your home. It’s perfect for internal hinged doors, wooden doors, cavity sliding doors and external sliding doors.

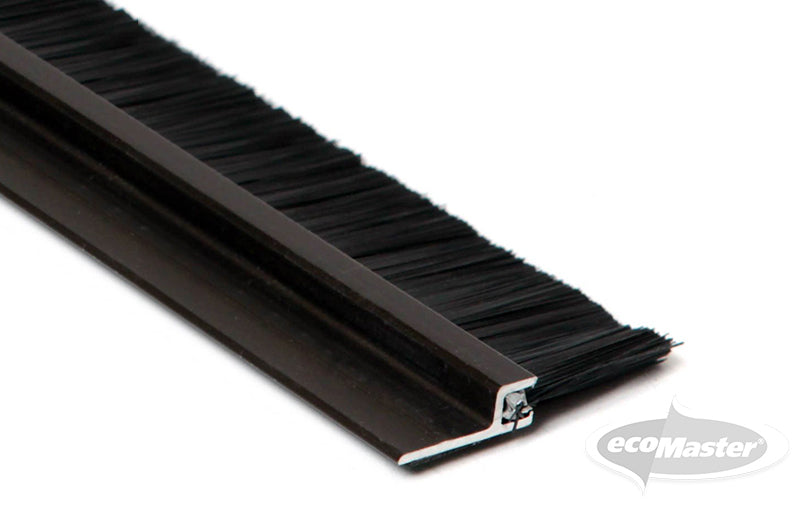

  • Raven RP 74 has a wide aluminium carrier and a 13mm nylon brush
  • 1000mm length can be cut to size
  • Brush seal is sufficiently dense to stop most air infiltration
  • Brush covers gaps up to 13mm
  • Self-adhesive
  • Can be screw fixed for external doors (screws not supplied)
  • Durable
  • Architectural quality


  • Versatile seal suitable for specific internal, external, cavity and sliding doors
  • Prevents draughts from entering living spaces so the temperature is maintained
  • Zones your house to reduce draughts from unused rooms or wet areas such as bathrooms
  • Improves the energy efficiency of your home
  • Does not interfere with operation of internal doors




Includes aluminium carrier and nylon brush

Suitable for

Installation at the base or head of:

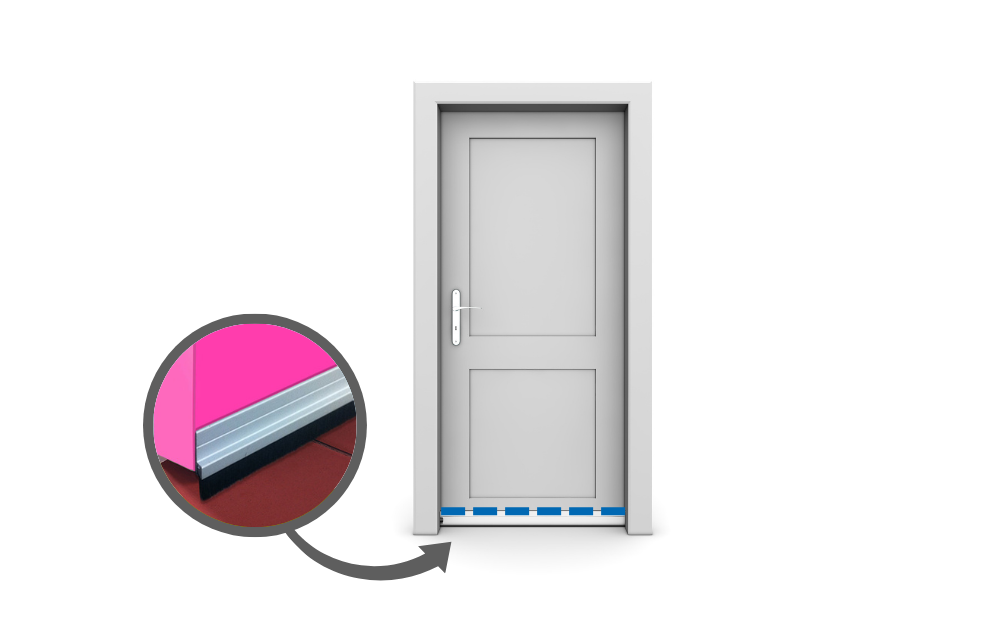

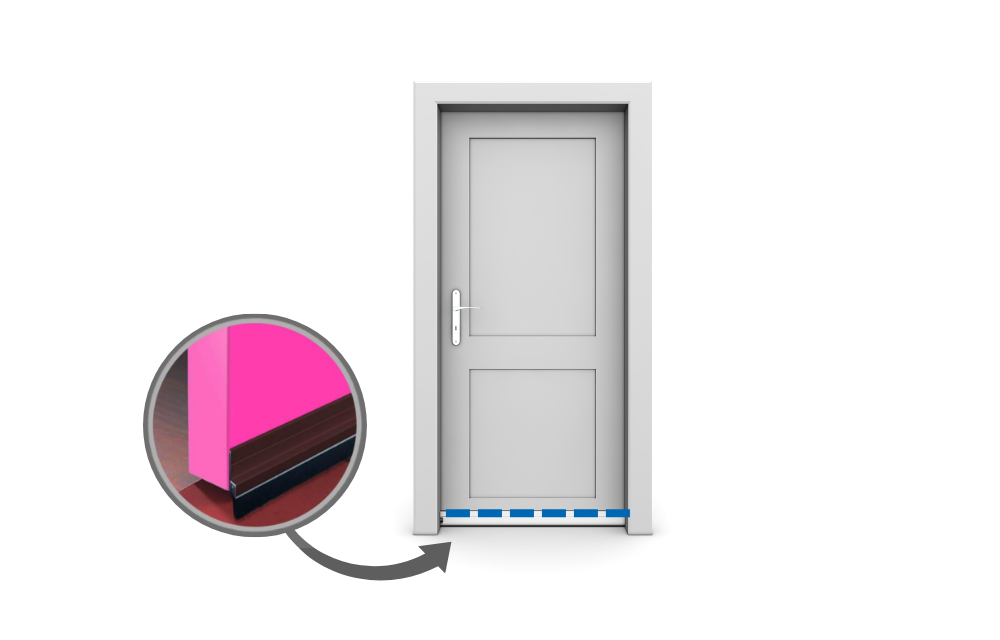

• Internal hinged doors that open onto a hard floor
• Inward opening external doors when automatic draught excluders can’t be fitted
• Head and step of external sliding doors
• Bottom of face mounted sliding doors
• Bottom of cavity sliding doors
• Wooden doors

Brush seal height

13mm – suitable for gaps up to 13mm


1000mm – can be cut to fit during installation




PLEASE NOTE: The RP74 is not suitable for all doors. It is NOT effective when the floor surface is uneven under the door. Instead, check out options such as RP15 with a brush pile of 25mm.



How To

What you will need:

  • Measuring tape
  • Pencil
  • Saw
  • Pliers or side cutters
  • Hammer

Watch the video:

Watch this video on how to fit and draught proof the bottom of an internal door. Whilst the product shown in this video is referred to as an RP2A, the instructions are similar for all brush seals.

Pro Tips:

  • If there is any variant in the floor surface under the door, i.e. if the gap between the bottom of the door and the floor varies as the door opens consider using a longer brush pile such as the 25mm of the RP15.
  • Before application, ensure surfaces are clean and smooth. Self adhesive strips do not adhere to oiled or alkyd finishes, or easy clean wash and wear paint surfaces.
  • Watch this video for tips on how to fit, trim and crimp a brush and carrier correctly
  • Cut the carrier and brush separately to stop the brush from coming apart.
  • Use a hammer to gently crimp the end of the carrier so the brush stays firmly in place.
  • RP74 has a wide aluminium carrier so it’s easy to attach with screws if needed (screws not supplied).
  • We recommend screw fixing any self-adhesive components to be used outside.


Q: What is it?
A: This is a self adhesive brush seal that can be cut to size and attached to the bottom of the door. This product can also be screw fixed where required (Screws not supplied).

Q: How does it work?
A: The RP74 is a self-adhesive brush seal that can be used in many ways. Here are the more common:

- The RP74 can be fitted to the bottom edge of a hinged door so as to prevent draught coming in under the door. Typically used on internal doors to zone out wet areas from the parts of the home that are heated / cooled.

- The RP74 can also be used to seal the bottom and tops of external timber sliding doors. In this case the brush is fitted horizontally so that the brush seals against the face of the door. (See also RP75 and RP15). We recommend screw fixing (screws not supplied).

- RP74s can also be used to seal the training edge of an external timber sliding door. In this instance they are fitted onto the edge of the non-opening drame to seal onto the back of the sliding door. Not suitable for all doors. User to determine suitability of this application.

Q: How do I install it and where can I access instructions?
A: To install this product, please refer to this video, that shows you how our door draught excluder products are installed.

Please note that this product has a wider aluminum carrier, which will make it easier to screw fix the product.

When fitting any self adhesive component outside we suggest screw fixing.

Q: Is there anything to watch out for when installing the RP74?
A: Yes, because the brush pile of the RP74 is only 13mm long this brush is not a good choice if there is any variance in the floor surface under the door. In particular if the gap between the bottom of the door and the floor varies as the door opens you may want to consider a longer brush pile such as the 25mm brush of the RP15.

Q: Will I still be able to open and close my doors?
A: This product should not prevent your door from its natural function, if you can no longer open or close your door after installation, then it may have been installed incorrectly.

Q: What do I do if the product is faulty?
A: The ecoMaster return policy can be found on the website.



Q: Can I collect my order?
A: Yes you can!  A “Ready for Pickup” email will be sent to you when you order is ready to be collected.
Please click this link for the Click and Collect details. Note:  this Collection Centre is in Preston in Victoria, NOT Prestons in NSW.

Q: When will my order be despatched?
A:  Generally, your order will be despatched within 1 to 2 business days.

Q: How will my order be delivered?
A:  If this is the only product in your order, it will be delivered by Australia Post.

Q: Will my order be tracked?
A:  Yes!  When your order is consigned, you will receive a tracking number that will show you where your order is and its expected delivery date.
Track your order here
Please note: Orders with two or more items may arrive in separate parcels with no additional shipping charge

Q: When will my order be delivered?
A: All AusPost orders are picked, packed and despatched within 2 business days.  Our experience with AusPost indicates that your order will be delivered within 2 - 5 business days.  Clearly this will fluctuate at peak shipping times such as Christmas.

Q: What happens if my order gets lost during transit?
A: On rare occasions we have had orders go missing. ecoMaster has solid procedures in place and photograph every order that leaves our warehouse.  The delivery of our orders at the local post office are videoed and we track the progress of orders.  If a delivery date appears to be beyond expectation, we will raise a query with AusPost on your behalf.  If your order cannot be found during transit, we will send a replacement.

Q: What happens if my order is stolen after delivery?
A: We will check with AusPost to ensure that the order was delivered to the correct address.  If that is confirmed, and your order has been stolen from your home after delivery, please raise a Police report.


Q: What is the product warranty for Raven door seals?
A: Raven door seals carry a product warranty of 2 years, but can be highly effective for much longer than that.  We have seen very few failures of Raven products over the 20+ years that we have been installing them.

Yes, they are slightly more expensive than other brands, but you only want to be installing your door seals once.

Q: What is the installation warranty for Raven door seals?
A: As this is a DIY product there is no warranty on installation.

Q: How do I get some help?
A:  If you have any questions, contact the ecoMaster team. We are all ex-installers and have lived experience of installing thousands of Raven poroducts.  We are here to help you and share our extensive experience so you get a great outcome for your home.

Q: What do I do if I have a problem with this product?
A: Refer to our Returns / Refunds page [Learn More].  Our Research and Development team will be keenly interested to learn of any product failure and will want images and samples of the product (if possible) so they can determine what the cause of failure was.
