RP78 | Acoustic BAL Rated | Perimeter Seal

RP78 | Acoustic BAL Rated | Perimeter Seal

Perimeter Seal

Regular price $119.00
Regular price Sale price $119.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Industry Leading
  • Quality Assured
  • Australian Designed
  • Step-by-Step Videos
  • Ships within 2 business days


Improve your comfort and reduce noise by installing RP78 door seals. This versatile product functions as both a weather seal and sound barrier. As one of the few seals to offer acoustic benefits, the RP78 meets BAL FZ standards and can be trimmed to fit your door's dimensions during installation. Typically used on external doors, it also works well in entertainment spaces to limit sound transfer.


Protect you and your home with a fire door seal. The RP78 Door Draught Perimeter Seal is not only a fire rated door seal, it will also help restore the quiet and thermal comfort in your home by creating a tight seal around your external doors.


  • BAL FZ and can be used on Smoke Doors
  • Medium Duty Durability
  • Concealed Screw Fix
  • Can be Mitred or Butt Joined


  • A picture with worth 1000 words, a video is worth more.  Watch this!
  • Does not interfere with the operation of the door
  • Keeps out Weather, Dust, and Draughts
  • Acoustic design to help reduce noise
  • Able to be used on arched door jambs



    Single Door 2 x 2100mm + 1 x 1000mm
    Double Door 3 x 2100mm


    Covers gaps up to 6mm gaps

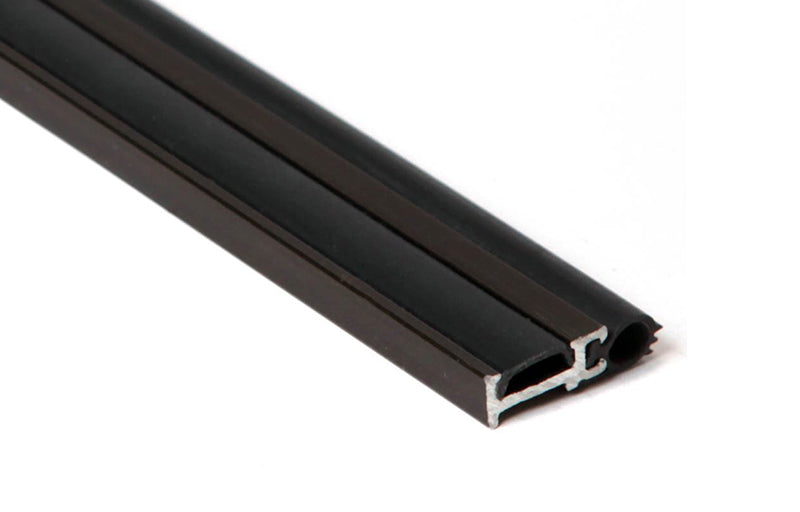

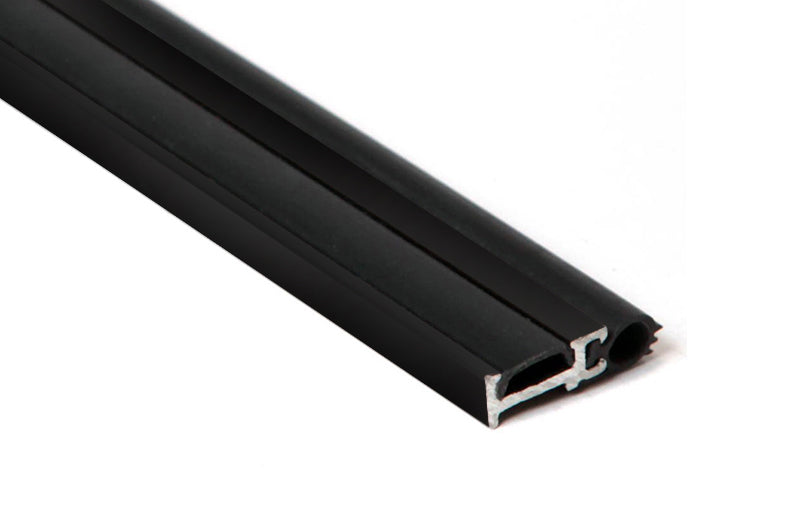

    Silver aluminium carrier with silicon rubber seal

    Weight 3kg



    • 3x lengths of RP78 (size dependant on Single/Double Door)
    • 3x lengths of Cover Strip (to cover the screw fixings)
    • Screw fixings (regular for timber, and self-drilling for aluminium/steel

    Test / Approvals:

    • UL Cert. GVYI.R37913.
    • Certifire CF5710
    • ANSI/BHMA A156.22.
    • Acoustic: NCC Spec. F5.5.
    • Fire: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
    • FRL & FRR-/240/60 and FD240.Fire Approved
    • Gasket flammability index 1 when tested to AS1530.2.
    • Smoke: NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
    • Energy: NCC Pt. & J3.4.


    Moderately easy

    How To

    Tools You Will Need For Installation:

    • Measuring tape
    • Saw
    • Pencil
    • Drill
    • Phillips Head Screwdriver

    Video Guide:

    Watch this video to learn how the RP78 Perimeter Seal works and how it is installed.


    Pro Tips:

    • For best acoustic performance use solid core doors
    • You can apply too much pressure onto the door which will flex the door and potentially make it hard to close. The seal should just touch the door.
    • Ensure to fit the screws in the centre of the fixing holes, this will allow you some adjustment room.
    • The silicone seal is durable however, it can be punctured by the tip of a driver. To avoid this pilot drill the jamb first, this will also make it easier to ensure the screws fit in the centre of the slot.

    • When fixing onto a metal door jamb we suggest you use a centre punch to mark the place of fixings on the metal. Use the drill or some of the self drilling screws to make the threaded fixing holes. Then fit the RP78 taking care to keep the driver tip on the screw head.

    • Pair with an RP35 for the door seal along with a RP4B treadplate.


    Q: What does a Door Draught Perimeter Seal (RP78) do?

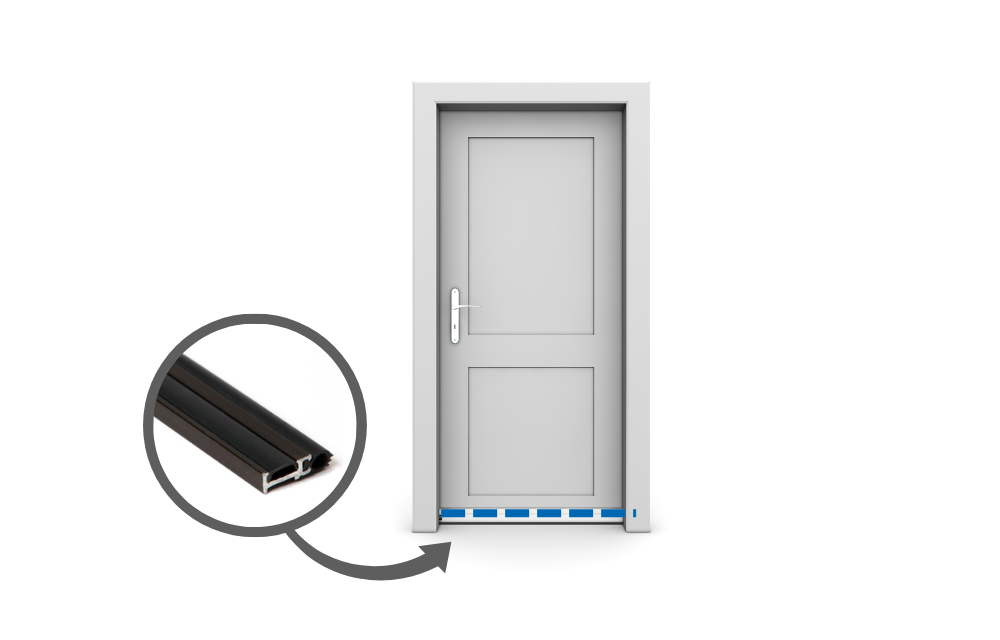

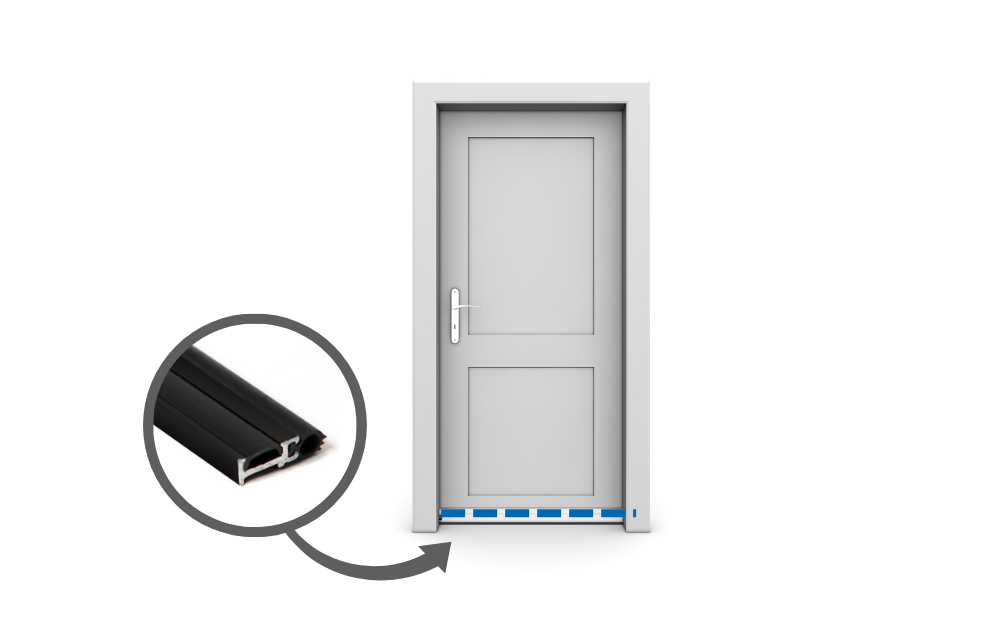

    A: The RP78 is a slim line door draught stopper that goes around the top and sides of your door and seals the gap between the door jamb and the door. On regular external inward opening doors the RP78 is fixed on the outside.

    Q: What is the RP78 made of?
    A: The RP78 is made from high quality aluminium and silicon rubber.

    Q: Do you have a recommended installer for RP78 Perimeter Seal?
    A: A recommended installer is highly location dependent. To find out if we have a recommended installer in your area please email, or call 1300 326 627.

    Q: Will I see the screw fixings?
    A: No, the RP78 has a cover strap that hides the screw fixings.

    Q: Does this help reduce noise?
    A: The RP78 will greatly reduce noise penetration.

    Q: Is it fire rated?
    A: The RP78 is rated BAL FZ.


    Q: Can I collect my order?
    A: Yes you can!  A “Ready for Pickup” email will be sent to you when you order is ready to be collected.  Please click this link for the Click and Collect details.  Note:  this Collection Centre is in Preston Victoria, NOT Prestons in NSW.

    Q: When will my order be despatched?
    A: Generally, your order will be despatched within 2 to 3 business days.

    Q: Will my order be tracked?
    A: Yes!  When your order is consigned, you will receive a tracking number that will show you where your order is and its expected delivery date.  Track your order here

    Please note: Orders with two or more items may arrive in separate parcels with no additional shipping charge

    Q: When will my order be delivered?
    A: All over-sized orders are picked, packed and despatched within 3 business days.  It will be delivered by a specialist courier that specifically handles oversized items that cannot be delivered via Australia Post. Please note that this is a specialist courier NOT an express courier. Our experience with the specialist courier varies depending upon the delivery location.   Clearly delivery times will fluctuate at peak shipping times such as Christmas.

    Q: Authority to leave?
    A: The standard courier delivery option is "Authorised to Leave". That means that if there is no one home when the courier arrives, your order will be left at your address. If this is not appropriate, please advise when you place your order for alternative arrangements to be made.

    Q: What happens if my order gets lost during transit?
    A: Occasionally we have had orders go missing. ecoMaster has solid procedures in place and photograph every order that leaves our warehouse.  If a delivery date appears to be beyond expectation, we will raise a query on your behalf.  If your order cannot be found during transit, we will send a replacement.

    Q: What happens if my order is stolen after delivery?
    A: If your order is stolen from your home after delivery, please raise a Police report.

    Q: How do I make my freight costs cheaper?
    A: We hear you!  Oversized items are expensive to transport.  Any item over 1.5m long carries an additional $10 charge by the courier.

    Potential cost effective freight alternatives are:

    • Share the costs of freight with a neighbour
    • Buy all your long items (such as Draught Dodgers) in one order (a second tube going to the same address is free)
    • Collect your order from Preston Victoria

    If you live regionally or in a rural location, freight costs will be high.  Do you have an address in a town where your order can be safely delivered?   We also live regionally and understand the frustration with the high costs of freight!!


    Q: What is the product warranty for Raven door seals?
    A: Raven door seals carry a product warranty of 2 years, but can be highly effective for much longer than that.  We have seen very few failures of Raven products over the 20+ years that we have been installing them.

    Yes, they are slightly more expensive than other brands, but you only want to be installing your door seals once.

    Q: What is the installation warranty for Raven door seals?
    A: As this is a DIY product there is no warranty on installation.

    Q: How do I get some help?
    A:  If you have any questions, contact the ecoMaster team. We are all ex-installers and have lived experience of installing thousands of Raven poroducts.  We are here to help you and share our extensive experience so you get a great outcome for your home.

    Q: What do I do if I have a problem with this product?
    A: Refer to our Returns / Refunds page [Learn More].  Our Research and Development team will be keenly interested to learn of any product failure and will want images and samples of the product (if possible) so they can determine what the cause of failure was.
