Product details

Description

Double doors look great—but they often leak air where they meet. 🚪↔️🚪💨

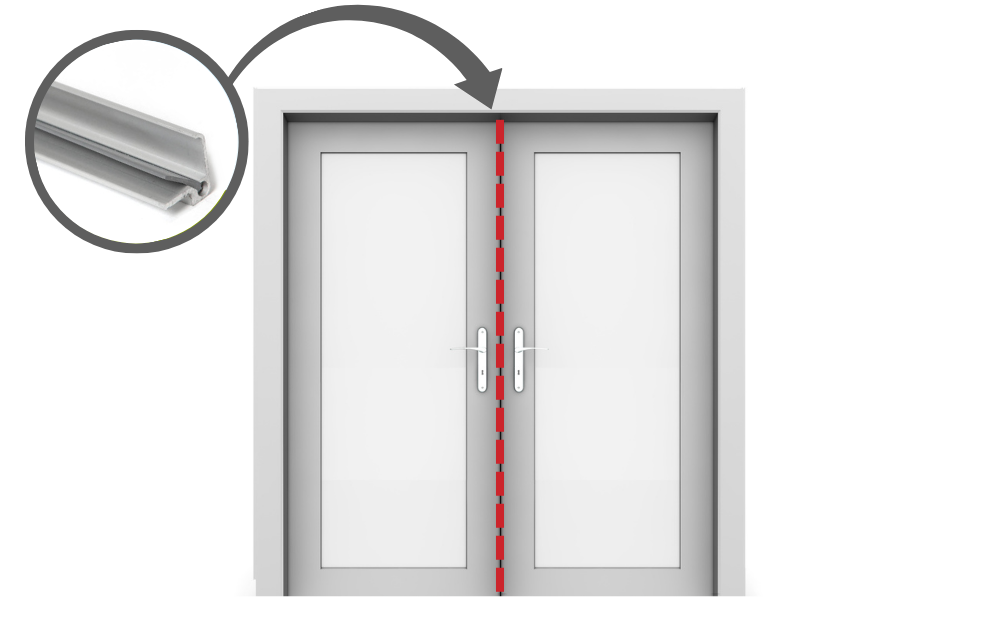

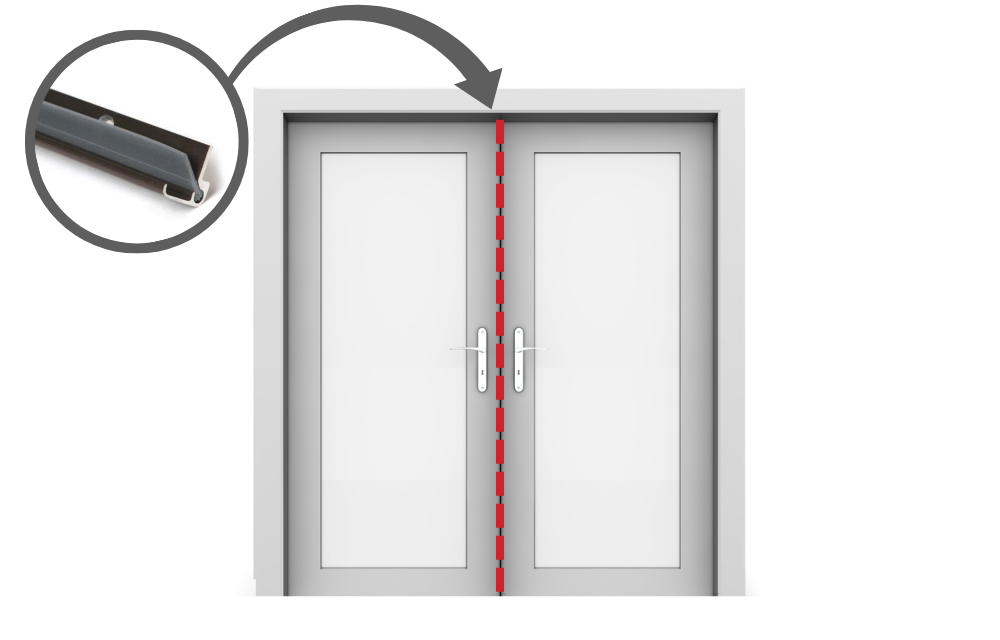

The RP16 Astragal Seal is designed specifically for double doors to seal the central gap where the two doors meet. This is one of the most common and overlooked sources of draughts, dust, noise, and even light infiltration—especially in older homes or French doors.

Made from durable aluminium with a flexible sealing strip, the RP16 neatly bridges the centre join without interfering with how the doors open or close. It helps maintain thermal comfort, block airflow, and reduce external contaminants entering through that slim but significant gap.

✅ Designed for double doors—hinged or French

✅ Seals the centre meeting point to prevent air leakage

✅ Blocks draughts, dust, noise and light

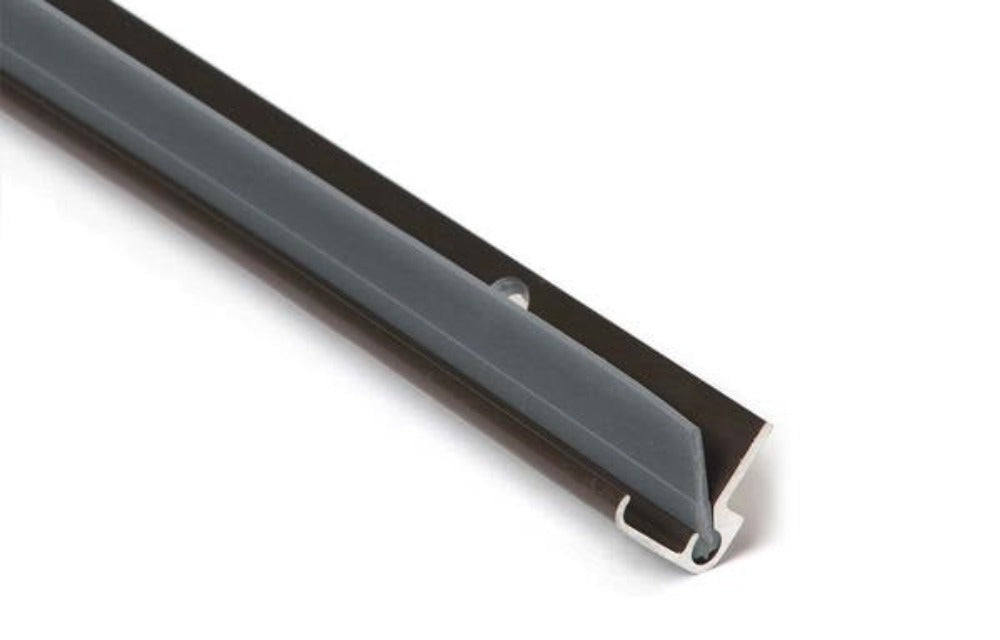

✅ Durable aluminium carrier with flexible sealing strip

✅ Easy to cut to size and install

✅ Works with timber or aluminium doors

Bridge the gap between beauty and performance.

The RP16 is the finishing touch your double doors need to seal right and feel cosy.

Specification



RP16 External French doors, double timber doors

Installation

The RP16 is screw fixed to the centre seal of your french or double doors.

Colours

Silver
Bronze
Black

Sizes 2250mm
Gap size Covers gaps between doors from 0mm to 8mm
Components

Silicon blade
Aluminum carrier
Fixing screw

How To

What you will need:

  • Tape measure
  • Drop saw with metal-cutting blade
  • Sharp cutting knife
  • Pencil for marking
  • Electric drill
  • Flat file
  • Screwdriver
  • Spare material

Watch our How To Video:

Follow our video instructions to install your RP16.  If you do get stuck, our team will happily provide phone support to help you successfully install the RP16 door seal.



Pro Tips:

  • The difficulty in fitting the RP16 can be quite variable. In the easiest circumstance it is simply a matter of cutting to length and screw fitting to the edge of a door. We highly recommend using a pilot drill to prevent the screw fixings from splitting the edge of the door.
  • Things that make fitting an RP16 more difficult include:
    • Needing to check in hinges to ensure a minimum 4mm centre gap.
    • Needing to rebate the RP16 around a door latch.
    • Needing to rebate the RP16 round concealed edge bolts in the top and the bottom of the inactive door
  • Best installed on the outside but will need to be installed on the inside if your doors have mushroom stops
  • We recommend always drilling pilot holes to position the device and to prevent splitting along the door’s edge.
  • The seal should be cut slightly shorter than the full length of the door to prevent jamming at the top or base

There are a couple of limitations with installing RP16 that you need to watch out for:

    • You will need a minimum of 4mm centre gap. It’s OK if the gap opens up further but in order for the RP16 not to bind you will need a minimum of 4mm. Sometimes the best way of achieving this is to check in the hinges of one or both of the doors.
    • The RP16 can only make up a lateral gap of 7mm. If your active door is not plumb with the inactive door by more than this, then the silicone blade of the RP16 may not seal against part of the active door. It may be necessary to shift the hinges on the active door so that the face of the the two doors are in the same plane.
Delivery

Q: Can I collect my order?
A: Yes you can!  A “Ready for Pickup” email will be sent to you when you order is ready to be collected.  Please click this link for the Click and Collect details.  Note:  this Collection Centre is in Preston Victoria, NOT Prestons in NSW.

Q: When will my order be despatched?
A: Generally, your order will be despatched within 2 to 3 business days.

Q: Will my order be tracked?
A: Yes!  When your order is consigned, you will receive a tracking number that will show you where your order is and its expected delivery date.  Track your order here

Please note: Orders with two or more items may arrive in separate parcels with no additional shipping charge

Q: When will my order be delivered?
A: Your order will be delivered by a specialist courier that specifically handles oversized items that cannot be delivered via Australia Post.
Please note that this is a specialist courier NOT an express courier. Our experience with specialist couriers varies depending upon the delivery location.  Clearly delivery times will fluctuate at peak shipping times such as Christmas, end of financial year and the pinnacle of winter bleakness!

Q: Authority to leave?
A: The standard courier delivery option is "Authorised to Leave". That means that if there is no one home when the courier arrives, your order will be left at your address. If this is not appropriate, please advise when you place your order for alternative arrangements to be made.

Q: What happens if my order is damaged in transit?
A: Our freighters have very strict policies on the ability to claim on insurance if your order arrives damaged.  There is a 48 hour window of receipt of goods for ecoMaster being able to advise the freighters of a damage claim.  PLEASE ensure you have advised us IMMEDIATELY if an order has been damaged on arrival.  Open your order immediately and check.  Outside of the 48 hour window, we are unable to make an insurance claim.

Q: What happens if my order gets lost during transit?
A: Occasionally we have had orders go missing. ecoMaster has solid procedures in place and photograph every order that leaves our warehouse.  If a delivery date appears to be beyond expectation, we will raise a query on your behalf.  If your order cannot be found during transit, we will send a replacement.

Q: What happens if my order is stolen after delivery?
A: If your order is stolen from your home after delivery, please raise a Police report.

Q: How do I make my freight costs cheaper?
A: We hear you!  Oversized items are expensive to transport.  Any item over 1.5m long carries an additional $10 charge by the courier.

Potential cost effective freight alternatives are:

  • Share the costs of freight with a neighbour
  • Buy all your long items (such as Draught Dodgers) in one order (a second tube going to the same address is free)
  • Collect your order from Preston Victoria

If you live regionally or in a rural location, freight costs will be high.  Do you have an address in a town where your order can be safely delivered?   We also live regionally and understand the frustration with the high costs of freight!!

FAQ

Frequenty asked questions

Q: What is it?
A: The RP16 is an architectural quality seal that seals the gap between double doors.

Q: How does it work?
A: The RP16 is specially designed for stopping air transfer between double doors. The aluminum carrier is fixed to the edge of one door and its silicon blade seals against the other door. This mechanism provides an excellent seal between your doors.

Q: How hard is the RP16 to install
A: The RP16 is more advanced than a standard DIY product.  There are detailed instructions and pro tips to walk you through the installation process.
If you are not confident to undertake this level of work then EMV as a centre seal is potentially a better way for you to go.

Q: How do I know it has been installed properly?
A: When the active door is closed the blade of the RP16 should be sealed against the entire length of the opposite door.

Q: Will my door still function as a door?
A: This product should not prevent your door from its natural function, if you can no longer open or close your door or it’s difficult to operate after installation, then it may have been installed incorrectly.

What is a draught excluder?

A draught excluder is a device that seals the gap at the bottom of your door to stop unwanted air, dust, noise, and even pests from sneaking in or out. It’s one of the simplest and most effective ways to improve your home’s comfort and energy efficiency—especially in older homes with gaps you can feel (or even see!).

Why do you recommend Raven draught excluders over other brands?

We’ve tested them all—and Raven comes out on top for performance, durability, and long-term reliability. While they might cost a little more upfront, Raven products last for years, not months. That means less replacing, less frustration, and more value over time.  Raven is the draught excluder we installed on our own home, 20+ years ago.  Its still there - working - effectively.

Why is Raven more expensive than what I can buy at a hardware store?

Because it’s built to last. Raven products are made with superior materials and are engineered to perform in real Aussie conditions—heat, cold, wind, and rain. Some carry a BAL (bushfire) rating and some carry acoustic ratings, so you’re not just buying a seal—you’re investing in comfort, safety, and peace of mind.

Are cheaper draught stoppers just as good?

Not really. Cheaper options might seem like a bargain, but they often fall off, lose shape, or stop sealing within months, or never work at all. You end up replacing them again and again. With Raven, you buy it once—and it just works, year after year.

Which Raven product is right for my door?

That depends on the size of the gap and the type of door. We’ve done the hard work for you with clear guides and curated product options. Or try Find and Fix My Draughts—it’s our easy tool to help you choose the perfect product for your home.

Can I install Raven products myself?

Yes! Most are DIY-friendly, and we provide installation tips and videos to walk you through it. If you’re comfortable using a drill or screwdriver, you’ll get a clean, professional result—and a draught-free door in no time.  If you are not comfortable with DIY, contact us for a referral to a trusted draught proofing technician in your area.
