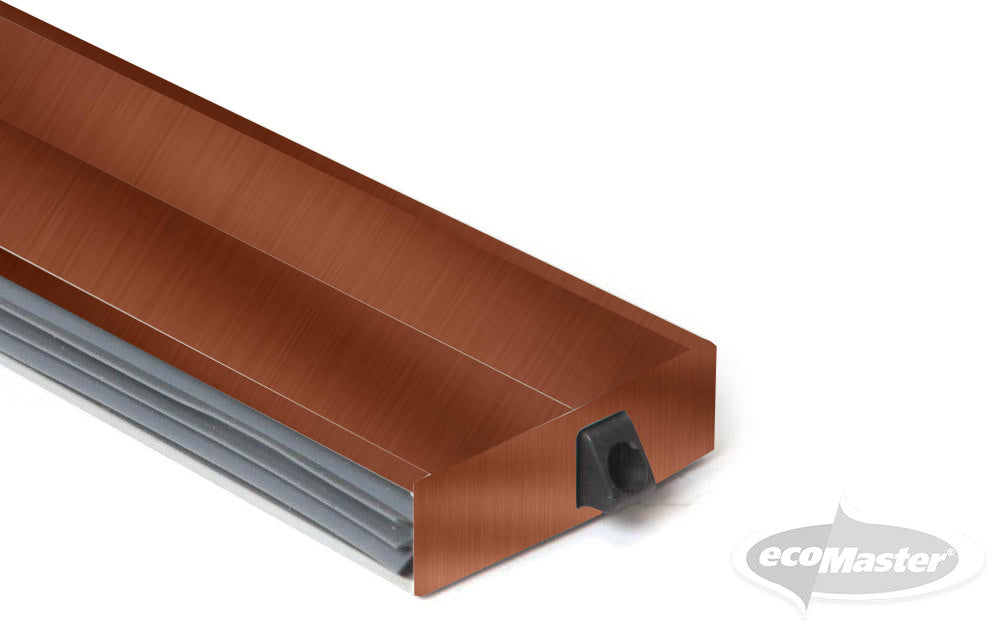

RP35 - Up to 13mm Gap

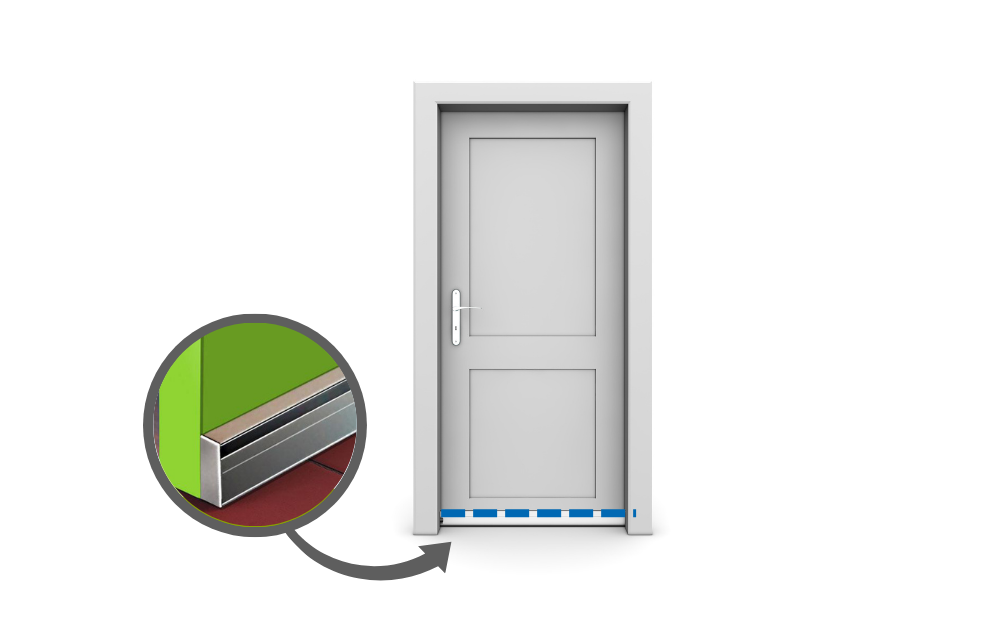

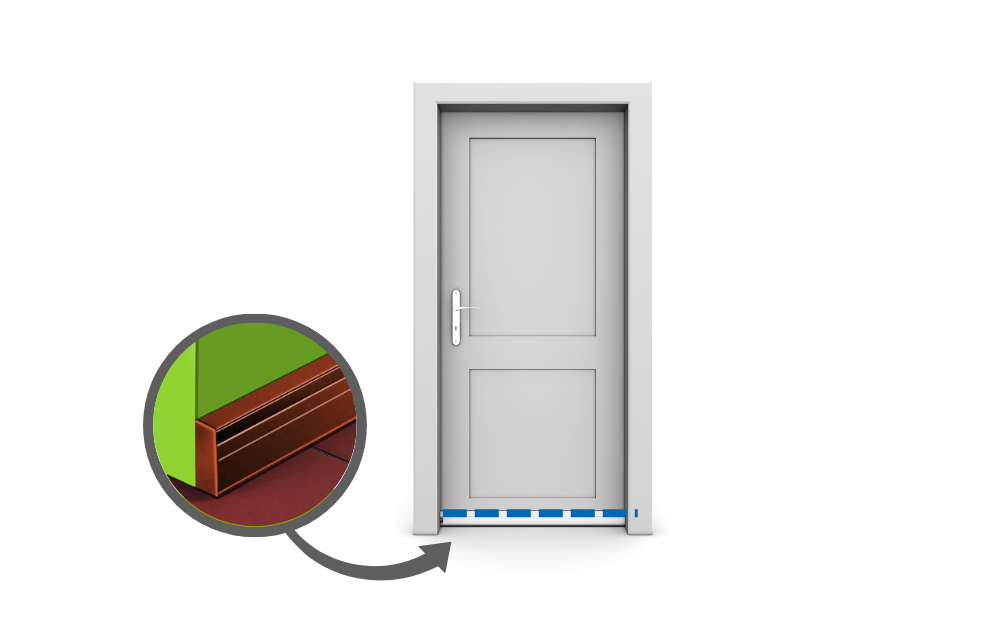

A premium automatic door bottom seal for larger gaps, better access and a more professional finish. Suitable for homes where wheelchairs, walkers and prams are in use.
✓ Seals larger door gaps from 3 mm to 13 mm
✓ Automatic drop-down action seals only when the door is closed
✓ No floor dragging when the door opens and closes
✓ Helps reduce draughts, dust, light and noise
✓ Wheelchair, walker and pram friendly because there is no raised threshold
✓ Must seal onto a hard surface such as timber, tile, concrete or a threshold plate — not carpet

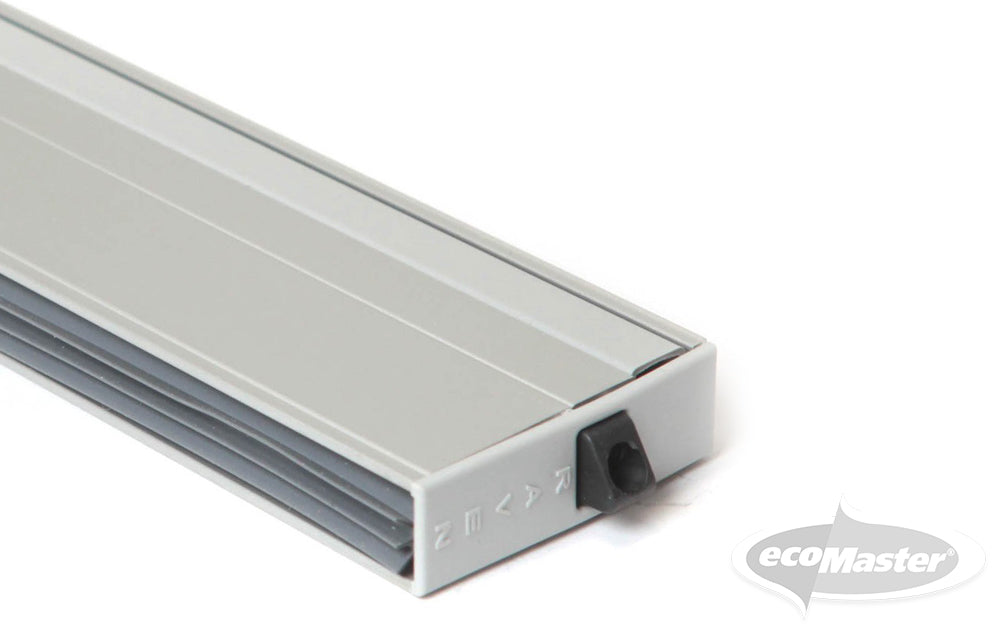

✓ Strong aluminium carrier with a silicone rubber seal

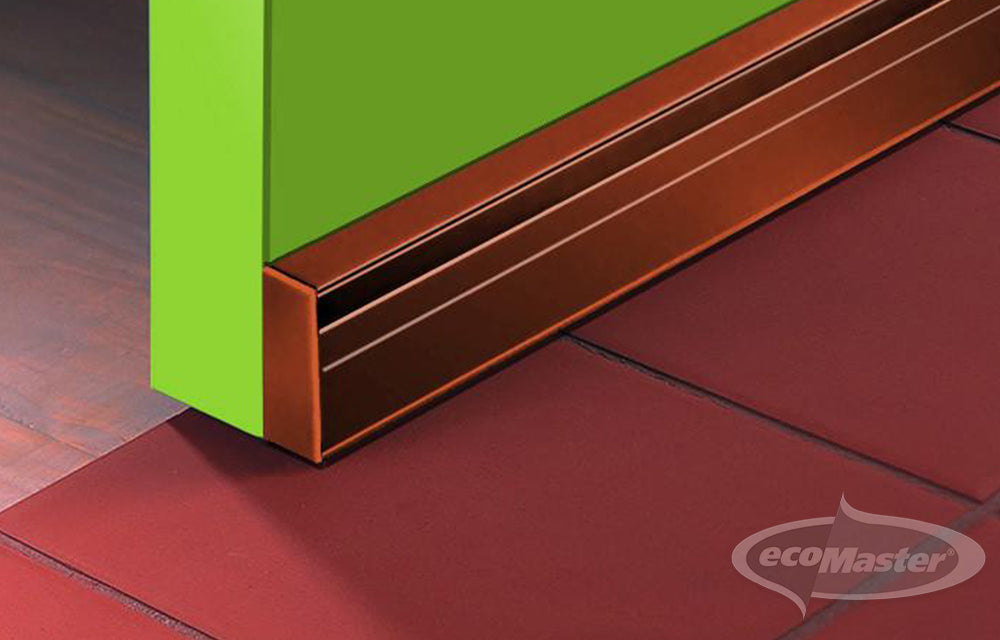

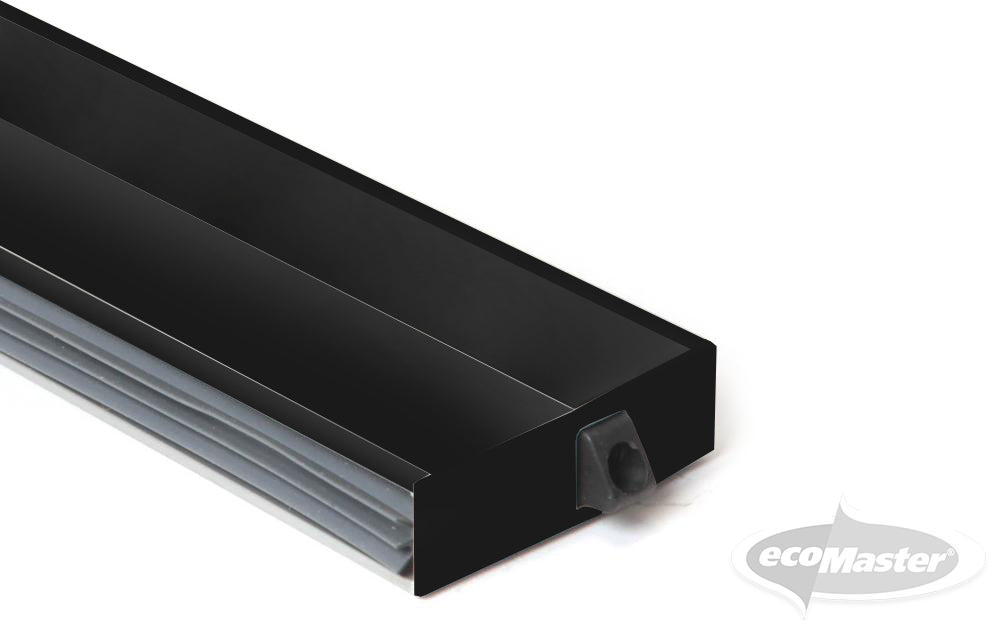

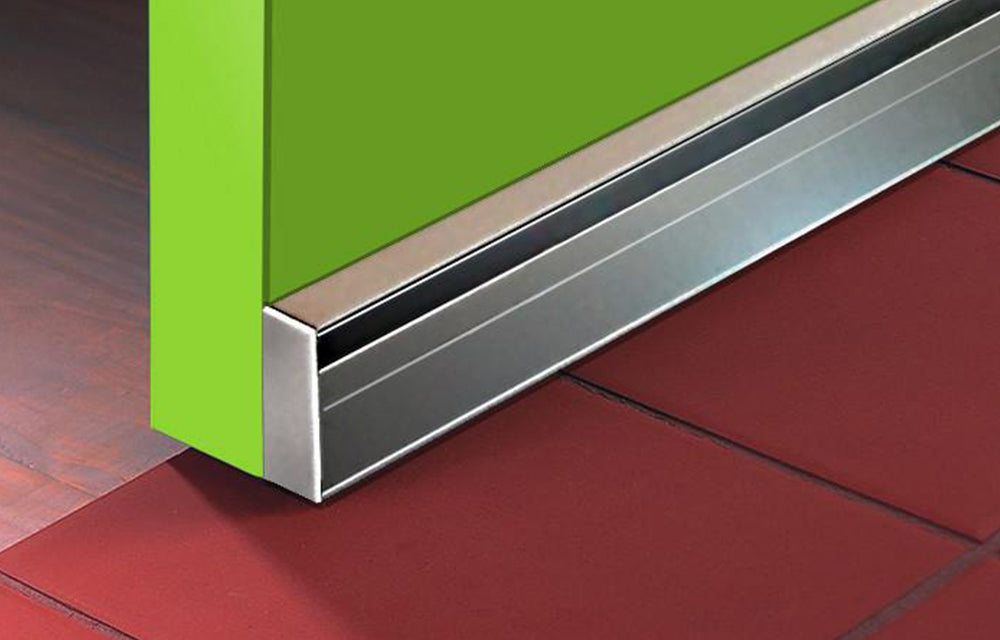

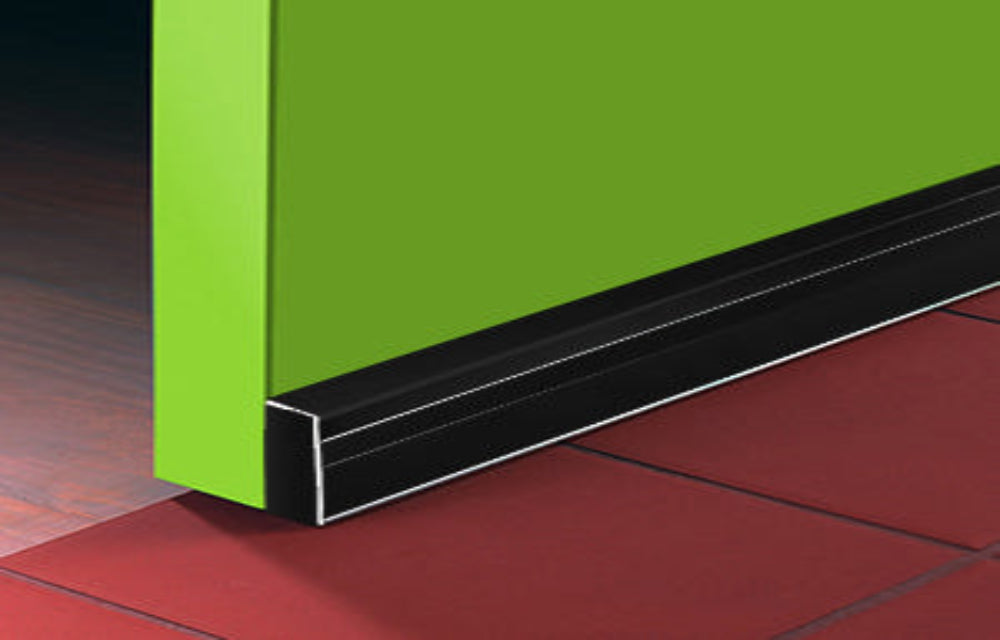

✓ Available in silver, bronze and black to suit your door
✓ Can be trimmed to size when the correct length is selected
🚛 Delivery direct to your doorstep
🔄 Replacement guarantee
🗓️ Availability: In Stock
🏅 2 years product warranty
Pairs well with
RP35 - Up to 13mm Gap
Product details
Description
Specification
| RP35 | |
|
Colour |
Silver |
|
Size |
600mm |
|
Fit |
Can be cut down to the exact size during installation. The RP35 must not be cut smaller than the next size down, or the mechanism may be damaged. |
|
Height |
47mm |
|
Thickness |
14mm |
|
|
|
How To Install
What you will need:
- Pencil
- Measuring tape
- Drill
- Saw
- Advanced DIY skills
Video Guide:
Pro Tips:
- If your doorstep is dished, you may also need to install a treadplate first, such as the RP95
- Order the width of RP35 the closest fit you can to your door. It must be longer than your door.
-
The RP35 can be cut down to exactly fit your door, but must not cut smaller than next size down, otherwise the mechanism will be damaged.
- The RP35 600mm cannot be cut down.
- Advanced DIY skills are needed to achieve an optimum finish. We do provide phone support if you need help!
Delivery
Q: Can I collect my order?
A: Yes you can! A “Ready for Pickup” email will be sent to you when you order is ready to be collected.
Please click this link for the Click and Collect details. Note: this Collection Centre is in Preston in Victoria, NOT Prestons in NSW.
Q: How will my order be delivered?
A1: If this is the only product in your order, it will be delivered by the courier option you select - either Australia Post or DFE are our current despatch options. We will be adding more options to provide the best service possible in the future.
A2: If this component is part of a longer order (that includes Draught Dodgers, for instance), it will be sent via a specialist courier that handles long freight.
Q: If I order via AusPost Express, when will be order be dispatched?
A: For AusPost Express Post, every order submitted before midday will be dispatched on the same day. Orders submitted after that time, will be picked and packed the next morning and dispatched at midday.
Q: Will my order be tracked?
A: Yes! When your order is consigned, you will receive a tracking number that will show you where your order is and its expected delivery date.
Track your order via AusPost
Track your order via DFE
Please note: Orders with two or more items may arrive in separate parcels with no additional shipping charge
Q: When will my order be delivered?
A: All orders are picked, packed and despatched within 2-4 business days. Our experience with couriers indicates that your order will be delivered within 2 - 5 business days. This delivery time frame will fluctuate at peak shipping times such as Christmas and mid-winter (being peak season for thermal energy efficiency products).
Q: What happens if my order gets lost during transit?
A: On rare occasions, we have had orders go missing. ecoMaster has solid procedures in place and photograph every order that leaves our warehouse. The delivery of our orders at the local post office are videoed and we track the progress of orders. If a delivery date appears to be beyond expectation, we will raise a query with AusPost / DFE on your behalf. If your order cannot be found, we will send a replacement.
Q: What happens if my order is stolen after delivery?
A: We will check with our couriers to ensure that the order was delivered to the correct address. If that is confirmed, and your order has been stolen from your home after delivery, please raise a Police report.
FAQ
Frequenty asked questions

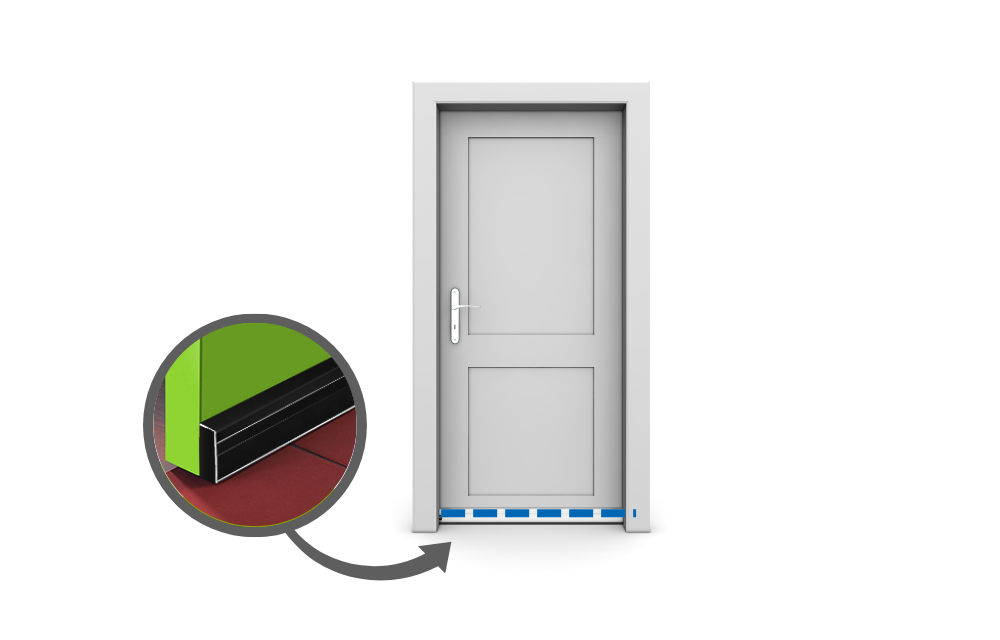

Q: What is a Raven RP35 Automatic Drop Down Excluder?
A: The RP35 is an ingenious, door seal with an in-built mechanism. An internal blade automatically drops and seals when the door is closed, lifting out of the way when the door is opened.
Q: Why choose an automatic drop-down seal instead of a sweep seal?
A: A sweep seal drags across the floor whenever the door opens and closes. The RP35 only drops when the door shuts, then lifts clear when the door opens. That gives you a strong seal without constant scraping.
Q: What gap size does the RP35 suit?
A: The RP35 suits gaps from 3 mm to 13 mm under the door. If the gap is smaller than this, the seal may be unnecessary or difficult to adjust correctly. If the gap is larger, you may need a different approach or a treadplate.
Q: Is the RP35 suitable for wheelchairs, walkers and prams?
A: Yes. Because it seals by dropping down from the door rather than creating a raised threshold, it is a good option where smooth access matters.
Q: Can I cut the RP35 to size?
A: Yes, most RP35 lengths can be cut to suit your door. However, it must not be cut smaller than the next size down, or the mechanism may be damaged. The 600 mm length cannot be cut down.
Q: What happens if my sill is uneven?
A: If the sill is dished or uneven, the seal may not land cleanly. In that case, you may need to install a treadplate first so the RP35 has a flat surface to seal against.
Q: Can the Door Seal - Draught Excluder RP35 be installed on either a left hand or right hand pf an opening door? (i.e. does the mechanism that drops the seal only work on one side?
A: The RP35 is ambidextrous and can be installed on a right hand hinged door or a left hand hinged door.
Q: Tell me more about your automatic drop down draught excluders?
A: We've got you covered. Explore all the automatic seals in one location [Learn More].
What is a draught excluder?
A draught excluder is a device that seals the gap at the bottom of your door to stop unwanted air, dust, noise, and even pests from sneaking in or out. It’s one of the simplest and most effective ways to improve your home’s comfort and energy efficiency—especially in older homes with gaps you can feel (or even see!).
Why do you recommend Raven draught excluders over other brands?
We’ve tested them all—and Raven comes out on top for performance, durability, and long-term reliability. While they might cost a little more upfront, Raven products last for years, not months. That means less replacing, less frustration, and more value over time. Raven is the draught excluder we installed on our own home, 20+ years ago. Its still there - working - effectively.
Why is Raven more expensive than what I can buy at a hardware store?
Because it’s built to last. Raven products are made with superior materials and are engineered to perform in real Aussie conditions—heat, cold, wind, and rain. Some carry a BAL (bushfire) rating and some carry acoustic ratings, so you’re not just buying a seal—you’re investing in comfort, safety, and peace of mind.
Are cheaper draught stoppers just as good?
Not really. Cheaper options might seem like a bargain, but they often fall off, lose shape, or stop sealing within months, or never work at all. You end up replacing them again and again. With Raven, you buy it once—and it just works, year after year.
Which Raven product is right for my door?
That depends on the size of the gap and the type of door. We’ve done the hard work for you with clear guides and curated product options. Or try Find and Fix My Draughts—it’s our easy tool to help you choose the perfect product for your home.
Can I install Raven products myself?
Yes! Most are DIY-friendly, and we provide installation tips and videos to walk you through it. If you’re comfortable using a drill or screwdriver, you’ll get a clean, professional result—and a draught-free door in no time. If you are not comfortable with DIY, contact us for a referral to a trusted draught proofing technician in your area.
